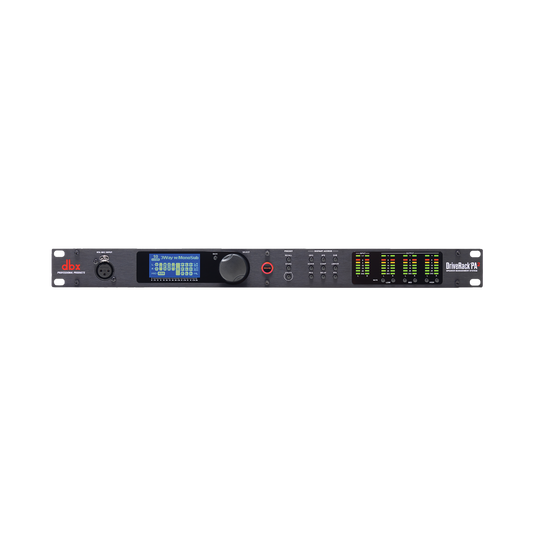

DriveRack PA2

Get more out of your P.A. for less

The DriveRack® PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android®, iOS®, Mac®, or Windows® device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

Características generales

A/D Dynamic Range

112 dB A-weighted, 110 dB unweighted

D/A Dynamic Range

112 dB A-weighted, 110 dB unweighted

Type IV Dynamic Range

123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW

Input Delay Length

100ms

Alignment Delay

10ms per channel (60ms total)

Sample Rate

48kHz

Dynamic Range

>110 dB A-weighted, >107dB unweighted

THD+Noise

0.003% typical at +4dBu, 1kHz, 0dB input gain

Frequency Response

20Hz – 20kHz, +/- 0.5dB

Interchannel Crosstalk

< -110 dB, -120dB typical (input-to-output < -100 dB)

Operating Voltage

100-120VAC 50/60 Hz ; EU - 220-240 VAC 50/60 Hz

Power Consumption

22 W

Características Audio

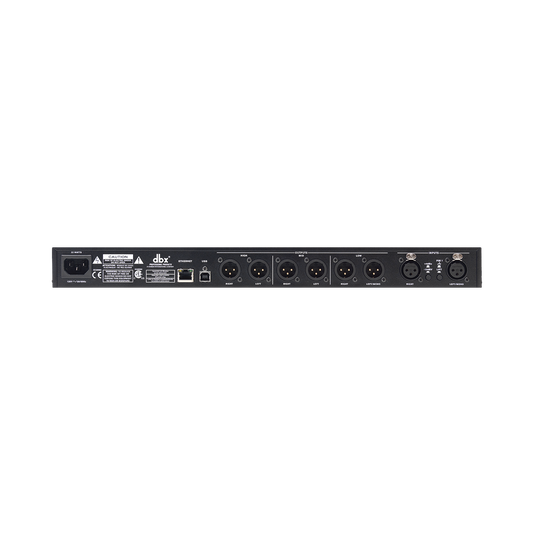

Input

(2) line inputs. (1) RTA Mic input

Input Connectors

(2) Female XLR line inputs. (1) Female XLR RTA Mic input

Input Type

Electronically balanced/RF filtered

Input Impedance

>50 kohm

A/D Converter

dbx Type IV™ Conversion System

CMRR

> 45dB

Mic Preamp Phantom Power

+15VDC (RTA)

Mic Preamp Equivalent Input Noise (EIN)

< -117dB, 22Hz-22kHz, 150 ohm (RTA)

Output

(6) Line Outputs

Output Connectors

Male XLR

Output Type

Electronically balanced, RF filtered

Output Impedance

120 Ω

Max Output

+20dBu

Medidas

Height

1.75 in (4.4 cm)

Depth

5.75 in (14.6 cm)

Width

19 in (48.26 cm)

Unit Weight

5.25 lbs. (2.4 kg)

Shipping Weight

6.75 lbs. (3.1 kg)
