dB12

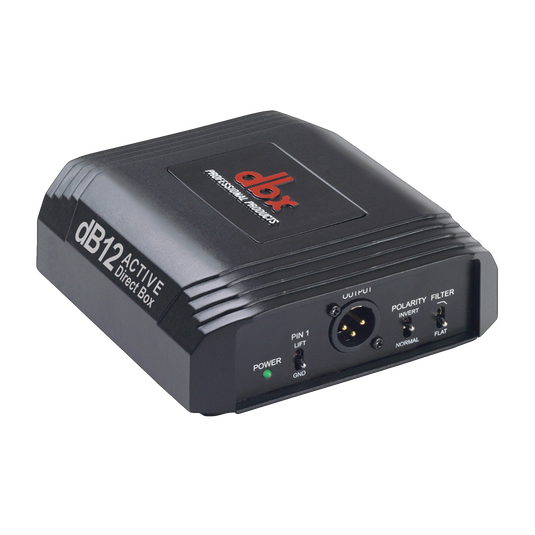

Preserve the Sonic Integrity of Your Music With a dbxDB12

At dbx, when we do something, we do it right. So when we decided to create our new direct injection boxes, we didn’t settle for the same old tired approach to direct box design. With our dbx name on the line, how could we? One look at our new dB10 Passive and dB12 Active direct boxes will tell you that these are clearly different. With their bullet-proof construction, and extraordinary audio performance to rival their looks, finally there’s a direct box worthy of the dbx name. Utilizing custom dbx mu-metal-shielded audio transformers, high-quality Neutrik® connectors, and low-noise circuitry preserves the sonic integrity and true characteristics of the signal source. Both boxes include a pad switch that accomodates instrument, line and even speaker level signals. Take even more control of your sound by utilizing the polarity invert switch to set the phase relationship between the direct and mic'd sound.

Características generales

Transformer

Custom dbx mu-metal-shielded

Frequency Response

20Hz to 20kHz, +/-2.5dB

Noise

<-105dB unweighted, 22kHz BW

THD

<0.01%, 20Hz to 20kHz BW; <0.005%, 1kHz

Características Audio

Input

1 instrument/line/speaker level

Input Connectors

1/4" jack

Input Type

Unbalanced, RF filtered

Insert Impedance

150k Ohm typical

Max Input

+20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad)

Output

(Thru) 1 parallel from input jack, 1/4" Unbalanced, RF filtered

Output Connectors

XLR male balanced

Output Impedance

150k Ohm typical

Max Output

0dBu

Medidas

Depth (in)

5.82

Width (in)

5.44

Height (in)

2.2

Weight (lb)

1.4

Weight (kg)

.65

1 x dB12

1 x Operation Manual (including Registration Card)
