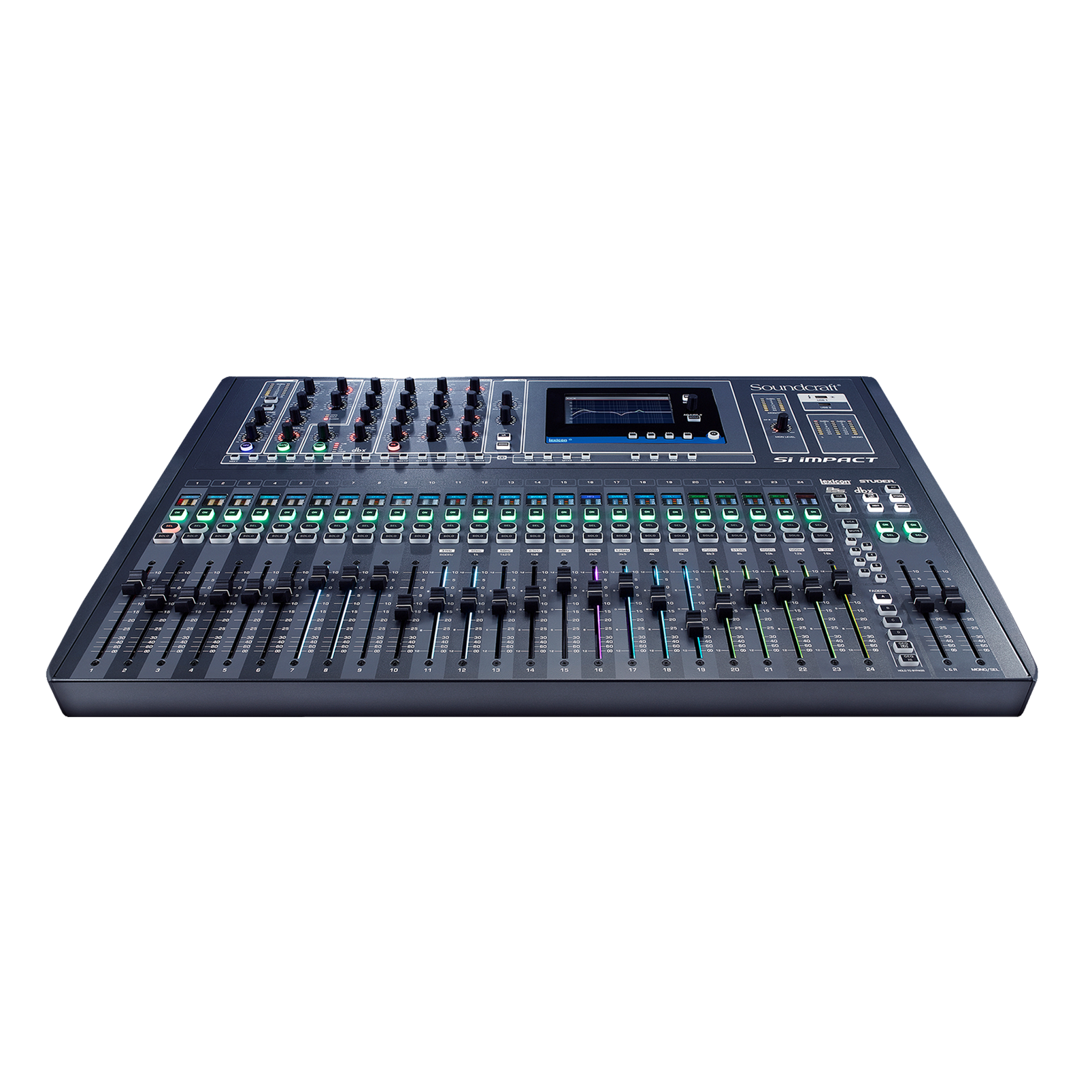

SI Impact - Black - 40-input Digital Mixing Console and 32-in/32-out USB Interface and iPad Control - Hero

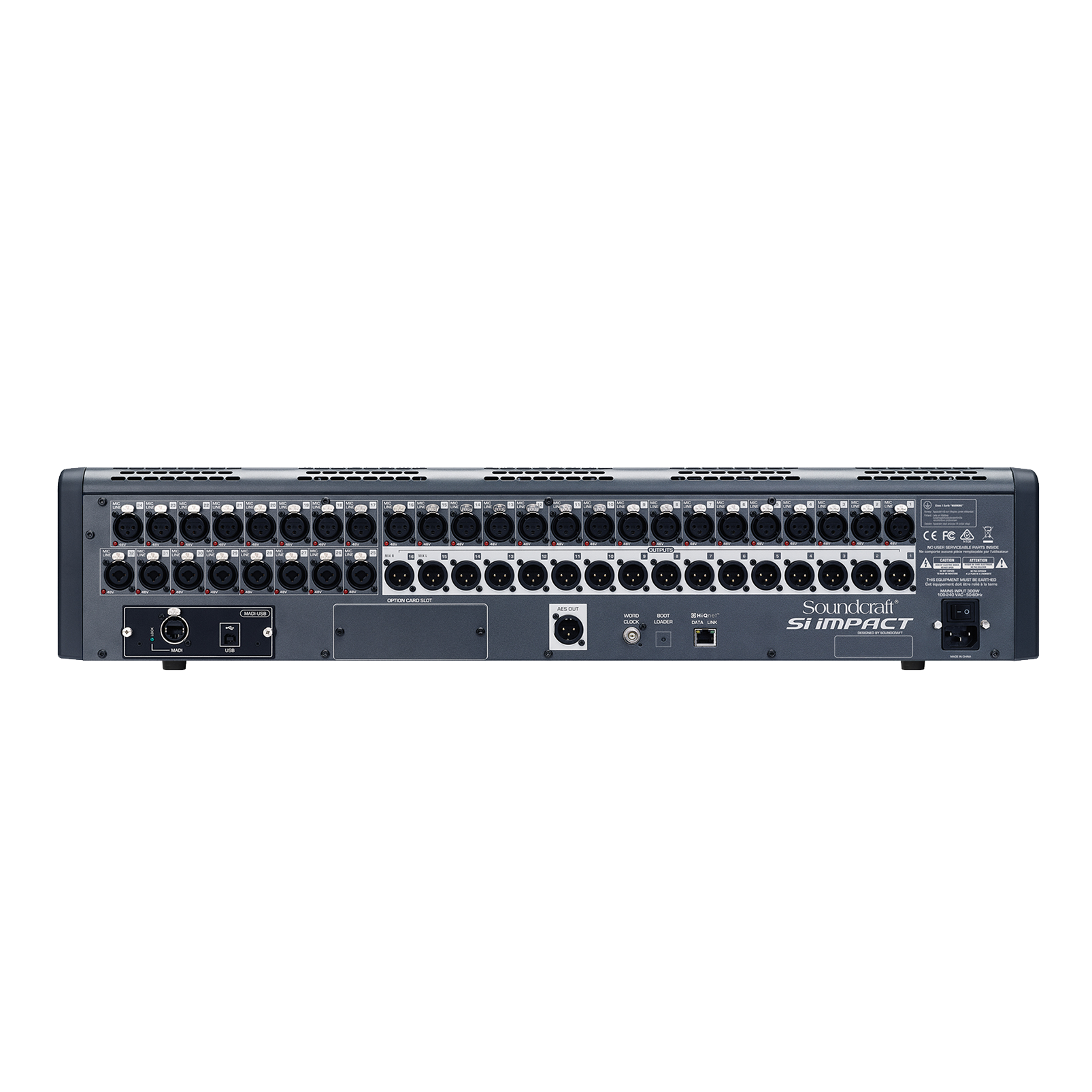

SI Impact - Black - 40-input Digital Mixing Console and 32-in/32-out USB Interface and iPad Control - Back
SI Impact - Black - 40-input Digital Mixing Console and 32-in/32-out USB Interface and iPad Control - Detailshot 1
SI Impact - Black - 40-input Digital Mixing Console and 32-in/32-out USB Interface and iPad Control - Detailshot 2
SI Impact - Black - 40-input Digital Mixing Console and 32-in/32-out USB Interface and iPad Control - Hero
SI Impact - Black - 40-input Digital Mixing Console and 32-in/32-out USB Interface and iPad Control - Hero
SI Impact - Black - 40-input Digital Mixing Console and 32-in/32-out USB Interface and iPad Control - Back
SI Impact - Black - 40-input Digital Mixing Console and 32-in/32-out USB Interface and iPad Control - Detailshot 1
SI Impact - Black - 40-input Digital Mixing Console and 32-in/32-out USB Interface and iPad Control - Detailshot 2
SoundCraft

SI Impact

Details
N.º de artículo SI Impact
Variations
Product Actions
Add to cart options
Promotions
Disponible ahora con nuestro distribuidor autorizado

Formas de Pago

The legendary British sound

The legendary British sound

From humble beginnings in London more than 40 years ago and still designed and engineered in the UK, Soundcraft defined the term 'British sound' in live sound mixing consoles. Soundcraft Co-Founder Graham Blythe's acclaimed microphone preamps and 'British' equaliser ensures the Si Impact proudly carries Soundcraft's signature sound today.

Going beyond analogue control

Going beyond analogue control

Combining One-Knob-One-Function control with unique features like FaderGlow™, Soundcraft combines analogue workflow with digital flexibility. FaderGlow™ illuminates the fader track in different colours to provide at-a-glance status information on precisely what the fader is controlling – aux sends, FX sends or even the graphic EQ that's available on every bus. Each fader channel also features a clear multi-color LCD display - giving 'at a glance' information on levels and offering a fully customisable'scribble strip' to name your channels.

World-class effects & dynamics

World-class effects & dynamics

Si Impact isn't just packed with DSP power. It's packed with DSP power from the acknowledged experts in digital FX. That means studio-grade reverbs, delays and modulations from Lexicon, legendary dbx dynamics and industry-standard BSS Graphic Equalisers.

Put your I/O where you need it

Put your I/O where you need it

With built-in connectivity for an optional Soundcraft Stagebox, Si Impact lets you put your I/O where you need it. Set up your Stagebox by the band for live sound applications, or position it in the live room for studio recording all via a single piece of Cat 5 cable.

Pristine audio direct to your DAW

Pristine audio direct to your DAW

Si Impact makes recording quick and easy with superb quality, built-in 32-in/32-out USB recording and playback. A single connection to your PC or MAC and you're ready to make multi-track recordings direct to any digital audio workstation. Send up to 32 inputs and 32 outputs to and from your DAW for recording and playback.

Remote mixing with your iPad®

Remote mixing with your iPad®

The mix power of Si Impact is accessible from anywhere in the venue, via the Soundcraft remote iPad® app. Mix FOH from the audience location, mix monitors from the stage, or allow musicians to set their own monitor mix from multiple iPad® devices.

Características generales

Frequency Response Mic / Line In to any Output - +/-1.5dB, 20Hz-20kHz
THD Mic Sensitivity -30dBu < 0.01% @ 1kHz
Mic Input Level +22dBu max
Line Input Level +22dBu max
Mix Output Level +21.5dBu max
Residual Noise -86dBu
Power consumption <130w (typical)
AC Input voltage range 88-264VAC auto sensing
AC Frequency range 47-63Hz
Operating Temperature Range 5°C to 45°C
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)

Medidas

Height 6.3 in (160 mm)
Width 29.5 in (750 mm)
Depth 19.7 in (500 mm)
Weight 44.1 lb (20 kg)
The Soundcraft Si impact is a compact digital console optimised for live sound. It’s powerful, yet simple to use, with intuitive controls, consistent colour-coded feedback, and rapid parameter access. Features such as analogue, MADI, and USB I/O as standard, motorised faders, the Assignable Channel Strip (ACS), tOTEM fast mix access buttons, and VCAs, mean that any aspect of the performance can be served to the surface in an instant, with analogue-style control of its comprehensive feature-set.

Manuales y descargas

Los últimos manuales del propietario, guías de inicio rápido y documentos.

Warranty Contact

español 89 KB

Owners Manual (English)

español 6 MB

Preguntas frecuentes
