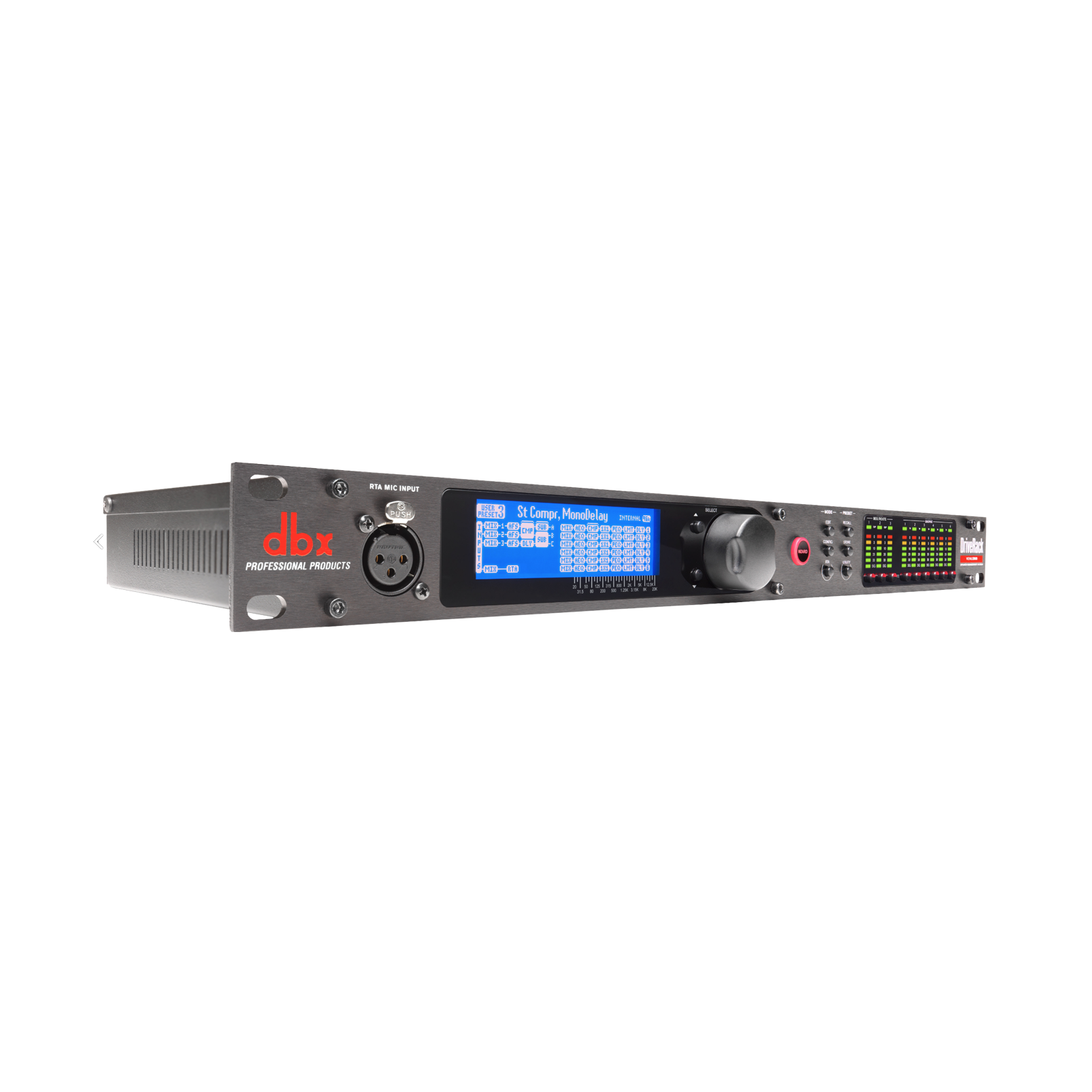

DriveRack VENU360 - Black - 3x6 loudspeaker management system - Hero

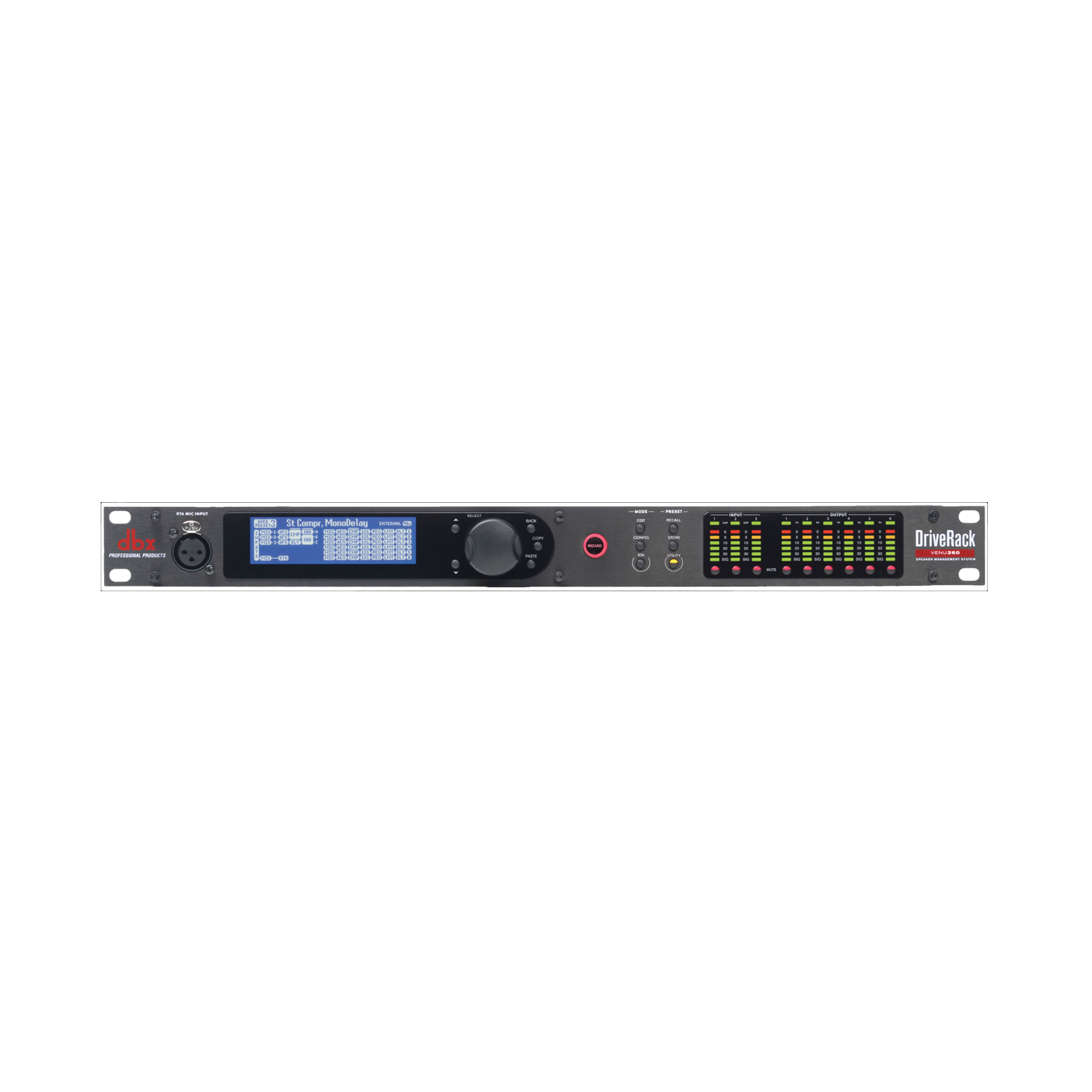

DriveRack VENU360 - Black - 3x6 loudspeaker management system - Front

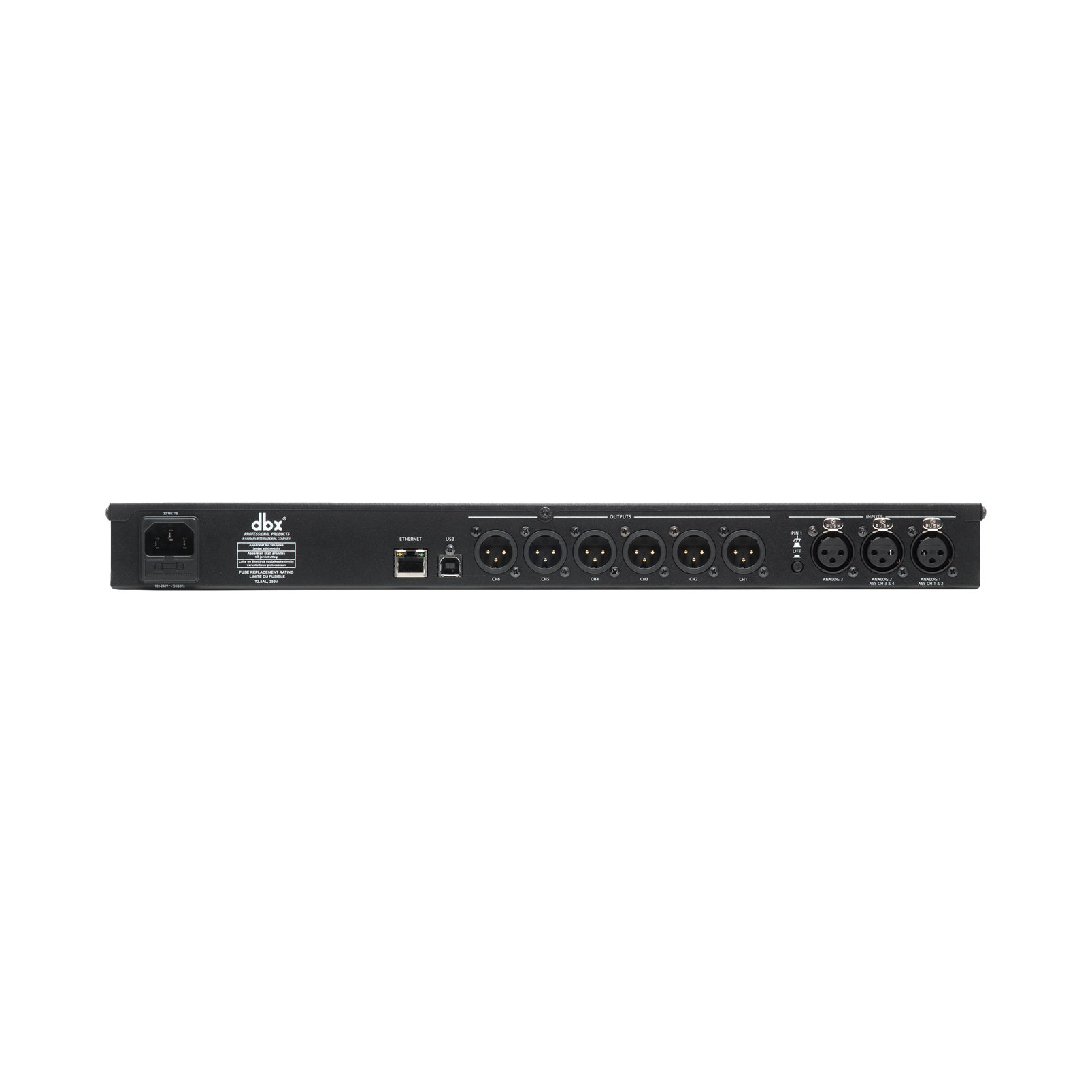

DriveRack VENU360 - Black - 3x6 loudspeaker management system - Back
DriveRack VENU360 - Black - 3x6 loudspeaker management system - Hero
DriveRack VENU360 - Black - 3x6 loudspeaker management system - Hero
DriveRack VENU360 - Black - 3x6 loudspeaker management system - Front
DriveRack VENU360 - Black - 3x6 loudspeaker management system - Back
dbx

DriveRack VENU360

Details
N.º de artículo DBXVENU360-V
Variations
Product Actions
vendor site logo COMPRA AQUÍ

Encuentra este producto en Hermes Music Club

Formas de Pago

No image icon

Input processing

dbx compression, AFS™ (Advanced Feedback Suppression), 31-band graphic EQ, 12-band parametric EQ (with narrow notch capabilities), subharmonic synthesis, backline delay, and noise gate

No image icon

Output processing

Crossover (supports full range up to mono 6-way systems), 12-band AutoEQs (8 AutoEQ bands, 4 User bands), dbx compression, automatic gain control, subharmonic synthesis, noise gate, tower delays (up to 1000ms per output), 8-band parametric EQs (used for speaker tunings), dbx limiting, and driver alignment delays

No image icon

Tested wireless routers

Dlink 636L, Dlink Cloud router 2000, Cisco / linksys: WRT54G2V1, Netgear WGR614 v7, and Netgear WNR 1000. (Other routers are likely compatible. This list represents those which have been tested thus far.)

Características generales

Alignment Delay Up to 1000 ms per output channel
A/D Converter 24-bit with dbx Type IV™ Conversion System
A/D Dynamic Range 117 dB A-weighted, 114 dB unweighted, 22 kHz BW
Type IV Dynamic Range 129 dB with transient material, A-weighted, 22 kHz BW; 126 dB with transient material, unweighted, 22 kHz BW; 121 dB typical with program material, A-weighted, 22 kHz BW
D/A Converter 24-bit
D/A Dynamic Range 116 dB A-weighted, 113 dB unweighted, 22 kHz BW
Internal Processing Wordlength 32-bit floating point
Supported Sample Rates 48/96 kHz (32-192 kHz using sample rate conversion)
System Performance Dynamic Range 114 dB A-weighted; 110 dB unweighted
THD+Noise 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain
Frequency Response 20 Hz – 20 kHz, +0 /- 0.5 dB
Interchannel Crosstalk < -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured
Latency Analog input to output
Operating Voltage 100-240 VAC 50/60 Hz
Power Consumption 18 W

Características Audio

Input (3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input
Input Connectors (3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input
Input Type Electronically balanced/RF filtered
Input Impedance > 30 kΩ, balanced line to line
Max Input Level (line inputs) > +28 dBu, balanced, ≤1% THD
CMRR > 50 dB @ 1 kHz
RTA Mic Preamp Phantom Power +48 VDC
Output (6) Line Outputs
Output Connectors Male XLR
Output Type Electronically balanced, RF filtered
Output Impedance 120 Ω, balanced line to line
Max Output Level +22 dBu, balanced, ≤1% THD

Medidas

Height 1.75 in (4.4 cm)
Depth 8.0 in (20.32 cm)
Width 19.0 in (48.26 cm)
Unit Weight 5.48 lbs. (2.49 kg)
Shipping Weight 7.10 lbs. (3.22 kg)
dbx took the dominant DriveRack® 260, improved its features, and added more. The result? The 3 input, 6 output DriveRack VENU360. The VENU360 provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, additional input channels, ethernet control via an Android,® iOS,® Mac,® or Windows® device, and updated wizards, the DriveRack VENU360 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.
