dbx

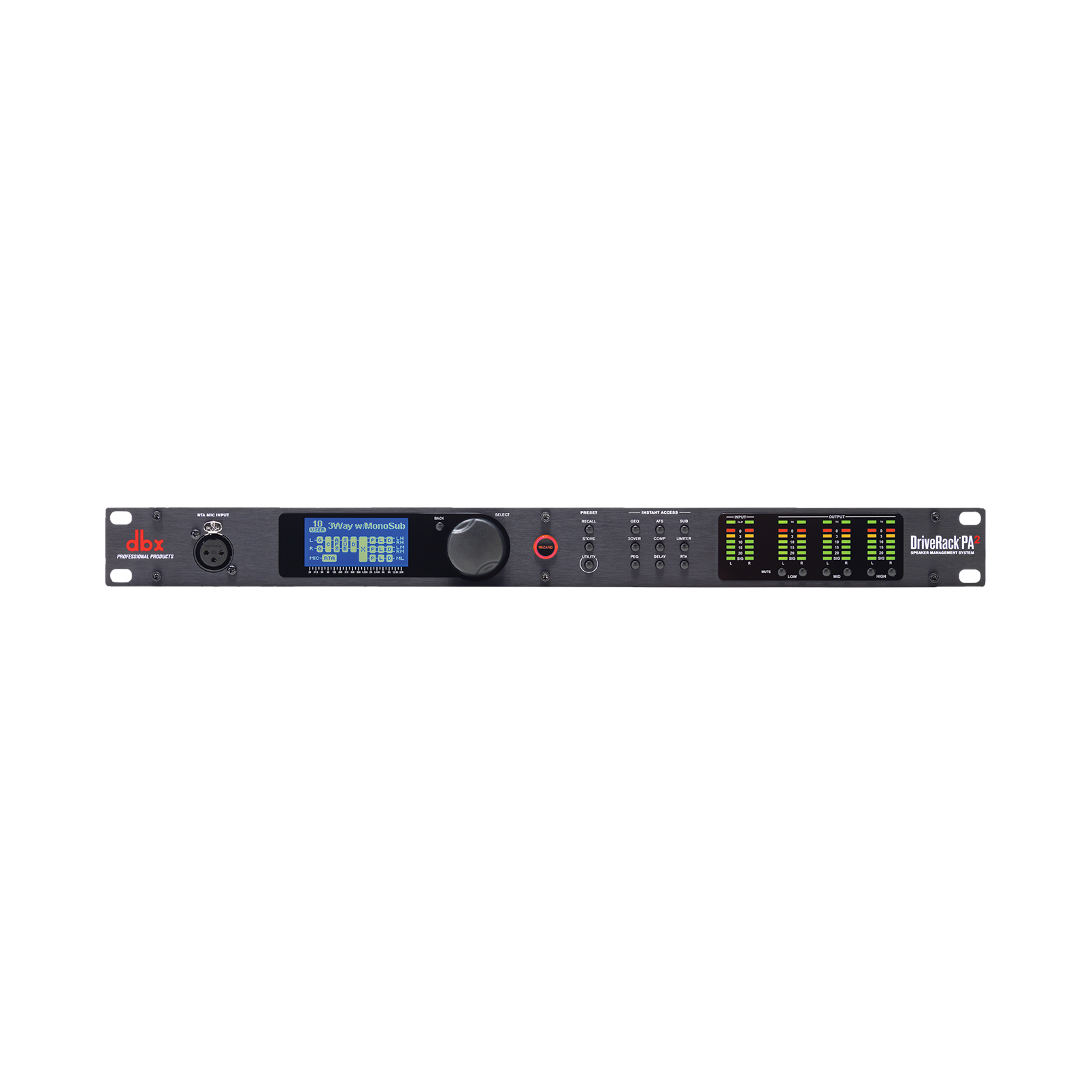

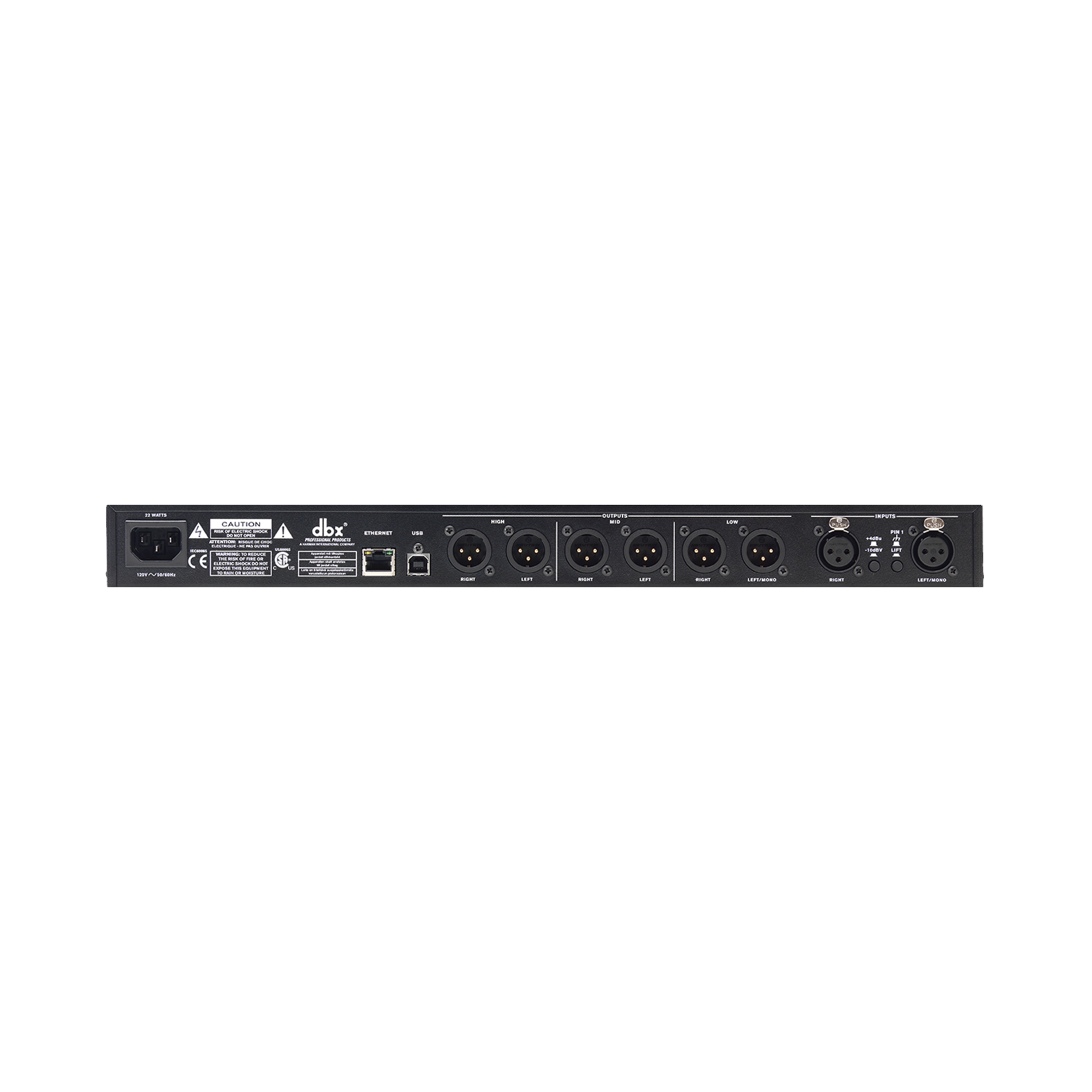

DriveRack PA2
Details https://www.harmanaudio.com.mx/DBXPA2-V-TW.html
N.º de artículo DBXPA2-V-TW
Variations
Product Actions
Encuentra este producto en Hermes Music Club
Formas de Pago
AutoEQ™
With the RTA Mic “listening” to your room, the new, updated DriveRack PA2 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds. This means room adjustments can now be made very quickly, without subjecting the audience to annoying, lengthy broadcasts of pink noise.
AFS™ Feedback Elimination
Enhanced AFS™ algorithm for faster, more precise feedback elimination, without adversely affecting your system’s tone.
Updated Wizards
Updated Wizards make initial set up easy, while ensuring speaker tunings and other settings are up-to-date.
Características generales
A/D Dynamic Range
112 dB A-weighted, 110 dB unweighted
D/A Dynamic Range
112 dB A-weighted, 110 dB unweighted
Type IV Dynamic Range
123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW
Input Delay Length
100ms
Alignment Delay
10ms per channel (60ms total)
Sample Rate
48kHz
Dynamic Range
>110 dB A-weighted, >107dB unweighted
THD+Noise
0.003% typical at +4dBu, 1kHz, 0dB input gain
Frequency Response
20Hz – 20kHz, +/- 0.5dB
Interchannel Crosstalk
< -110 dB, -120dB typical (input-to-output < -100 dB)
Operating Voltage
100-120VAC 50/60 Hz ; EU - 220-240 VAC 50/60 Hz
Power Consumption
22 W
Características Audio
Input
(2) line inputs. (1) RTA Mic input
Input Connectors
(2) Female XLR line inputs. (1) Female XLR RTA Mic input
Input Type
Electronically balanced/RF filtered
Input Impedance
>50 kohm
A/D Converter
dbx Type IV™ Conversion System
CMRR
> 45dB
Mic Preamp Phantom Power
+15VDC (RTA)
Mic Preamp Equivalent Input Noise (EIN)
< -117dB, 22Hz-22kHz, 150 ohm (RTA)
Output
(6) Line Outputs
Output Connectors
Male XLR
Output Type
Electronically balanced, RF filtered
Output Impedance
120 Ω
Max Output
+20dBu
Medidas
Height
1.75 in (4.4 cm)
Depth
5.75 in (14.6 cm)
Width
19 in (48.26 cm)
Unit Weight
5.25 lbs. (2.4 kg)
Shipping Weight
6.75 lbs. (3.1 kg)
The DriveRack® PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android®, iOS®, Mac®, or Windows® device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.
